Description
MAVOLUX 5032 B – Kit
MEASURING FUNCTIONS
| Illuminance | 0.001 lx … 199 990 lx / 0.001 fc … 19 999 fc |
| Luminance | 0.01 cd/m² … 1 999 900 cd/m² / 0.001 fL … 199 990 fL with optional luminance attachment, not classified |
| Sampling rate | 2/s |
| Measuring sensor | Silicon photodiode with V(λ) filter |
| Probe with ¼“ tripod thread |
• |
| Probe connector cable | 1.5 m, plug-in, Binder series 711 plug, 5-pin |
| Compliance with the Standards |
DIN 5032-7 class B / DIN EN 13032-1 appendix B / ISO CIE 19476 |
| Characteristic value – V(λ) matching (f1‘), typical | < 3 % |
| Characteristic value – cos-like rating f2, typical f2 | < 2 % |
| Temperature dependence | < 0.1%, temperatur compensated |
| Accuracy | ± 2.5 % rdg ± 1 digit |
POWER SUPPLY
| Batteries | 1,5V mignon, type AA |
| Automatic battery monitoring | • |
| Automatic shutdown | Off, 10 s, 30 s, 1 min, 2 min, 5 min |
| Battery service life | Up to 16 h continous operation with alkaline manganese battery |
| Power supply | via USB |
OPTIONAL ACCESSORIES
 |
FACTORY CALIBRATION CERTIFICATE |
 |
DAKKS CALIBRATION CERTIFIKAT |
 |
LUMINANCE ATTACHMENT M516G |
 |
ADAPTER DISC M499G |
 |
MAVOPROBE EXTENSION V071A – 3 m, V072A – 5 m, V073A – 10 m |
 |
USB ADAPTER CABLE V074A |
OPERATION
| Display | FSTN graphic display, 128×64, monochrome, 50 mm x 25 mm |
| Background illumination | Selectable mode and adjustable brightness |
| Controls | 6 keys, fluorescent lettering |
| Measured value memory | 8 GB |
| Interface | USB 2.0, micro-B socket |
| Software | MAVOSOFT |
MISCELLANEOUS
| Operating temperature | -10 °C to +50 °C |
| Dimensions | 65 mm x 120 mm x 19 mm (MAVOMASTER) 33 mm x 115 mm x 27 mm (MAVOPROBE) |
| Weight | 210 g including battery |

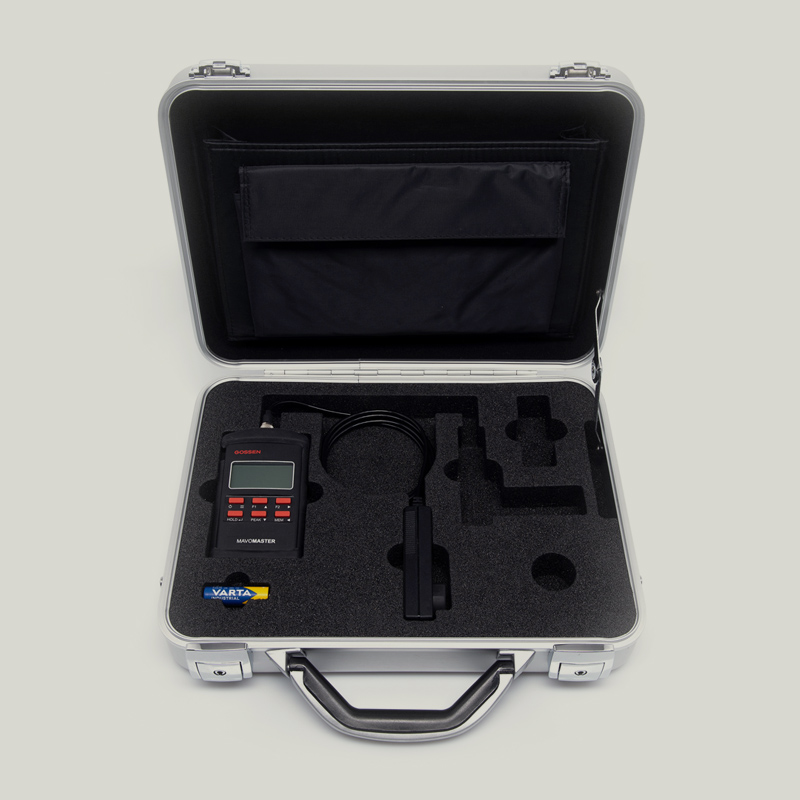

| Scope of delivery | MAVOMASTER, MAVOPROBE LUX 5032 B, rubber holster, aluminum case, MAVOSOFT, USB cable, battery, operating instructions, final test certificate |
