Description

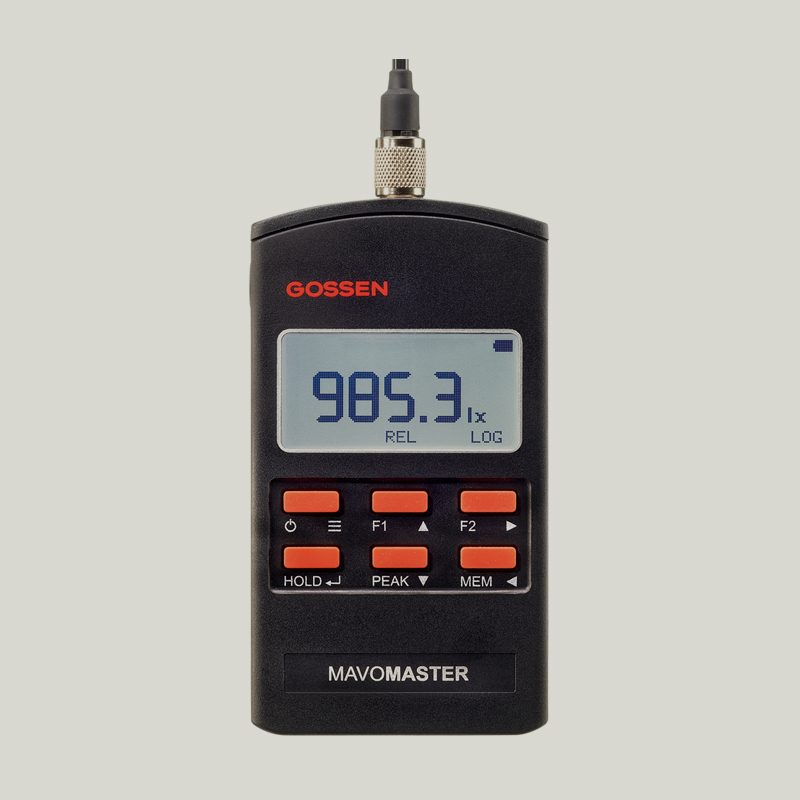

MAVOMASTER
MEASURING FUNCTIONS
| Sampling rate | 2/s |
| Probe connector cable | Probe connection, Binder series 711 plug, 5-pin |
| Compliance with the Standards | DIN 5032-7 / DIN EN 13032-1 appendix B / ISO CIE 19476 |
POWER SUPPLY
| Batteries | 1,5V mignon, type AA |
| Automatic battery monitoring | • |
| Automatic shutdown | Off, 10 s, 30 s, 1 min, 2 min, 5 min |
| Battery service life | Up to 16 h continous operation with alkaline manganese battery |
| Power supply via USB | über USB |
OPTIONAL ACCESSORIES
 |
RUBBER HOLSTER V076A |
 |
USB CABLE USB 2.0 type A plug – Type B micro plug (1m) V075A |
 |
PLASTIC CASE M520G |
 |
ALUMINUM CASE V077A |
OPERATION
| Display | FSTN graphic display, 128×64, monochrome, 50 mm x 25 mm |
| Background illumination | Selectable mode and adjustable brightness |
| Controls | 6 keys, fluorescent lettering |
| Measured value memory | 8 GB |
| Interface | USB 2.0, micro-B socket |
| Software | MAVOSOFT |
MISCELLANEOUS
| Operating temperature | -10 °C to +50 °C |
| Dimensions | 65 mm x 120 mm x 19 mm |
| Weight | 100 g including battery |
| Scope of delivery | MAVOMASTER, battery, operating instructions |
